Pumps by Manufacturer

JPR-CT3508 JMP Marine Engine Cooling Pump

New Johnson Pump 10-24277-3. Uses Johnson 09-1028BT-1 Impeller Kit. Replaces Volvo Penta 858470, 858469, and other pumps.  See blueprint for exact details and difference between 10-24277 models.

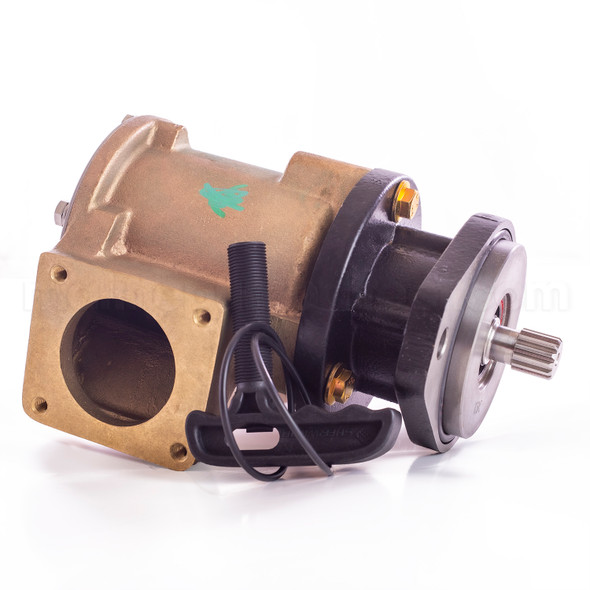

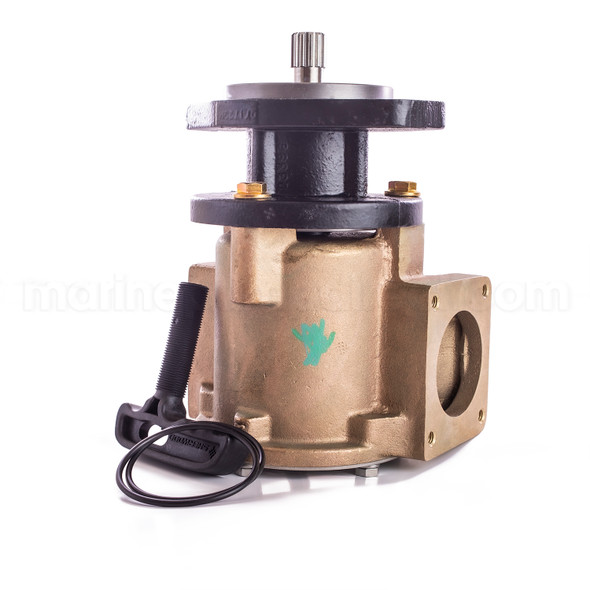

Genuine Sherwood G2909X  replaces G1817X.  Please note the position of the mounting flange.  Pump comes with water port O-rings and an impeller puller tool. Uses Sherwood Impeller Kit 29000K

Genuine Johnson Pump 10-24398-01.  Used on John Deere engine.  Mounting holes are in vertical orientation.  For details on mounting, look at the blueprint.  The 10-24398-01 mount flange is pictured on the upper left...

Genuine Johnson Pump 10-24398-02.  Pump is used on John Deere.  Mounting holes are horizontal (perpendicular to water ports).  See the detailed blueprint where the 10-24398-02 mounting flange is pictured on lower left of the page...

Genuine Jabsco 6590-0005 pump.  The clutch on this pump is manual.  Ports have an internal pipe thread of  1 1/4". Uses Jabsco Impeller Kit 836-0003P

New Jabsco pump 18330-0040 with 2" NPT ports, 12 volt clutch, and single "B" groove pulley.    Uses Jabsco Impeller Kit 17936-0001P

New Jabsco pump 18330-0000 with 2" NPT ports, 12 volt clutch, and two "A" groove pulley   Uses Jabsco Impeller Kit 17936-0001P

Sherwood pump P1722C Uses Sherwood Impeller Kit: 17000K Impeller Kit 2 Pack 17000K Minor Repair Kit:25124 Major Repair Kit:25122 Uses Cummins 3008400 Gasket. Pump Body: Bronze Ports: Inlet: 2" Hose, Outlet: 1 3/4"...

Sherwood Pump G8001. Replaces: Kohler 28487 359341 5-7 KW Diesel, GP8001 GP-8001. Uses Sherwood Impeller Kit 8000K  Pump Body: Bronze Ports: 3/8" NPT Cam: Full Impeller: Neoprene Shaft Seal: Mechanical Drive: Flange Mounted to...

New Sherwood pump G2603X. Minor Kit 24841 Major Kit 24842 Replaced with G2610X
